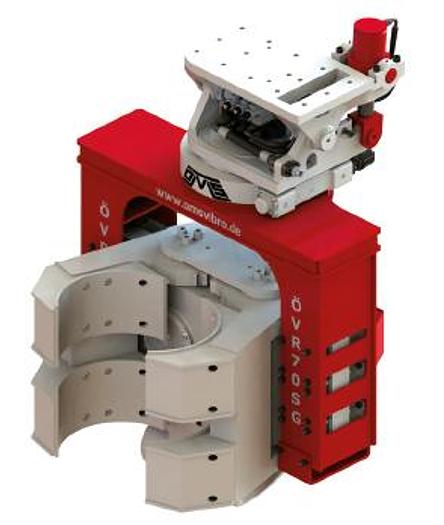

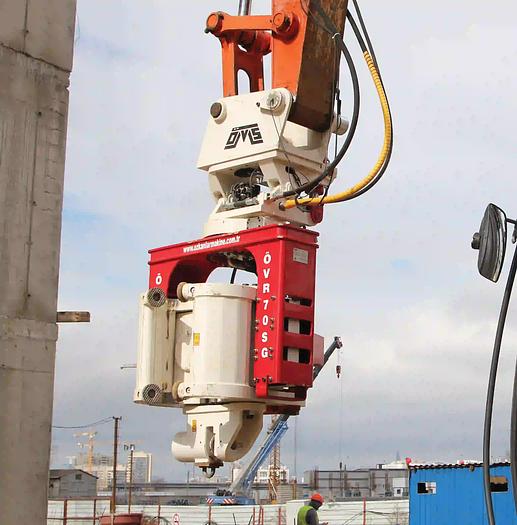

SIDE GRIP PILE DRIVER (VIBRO HAMMER)

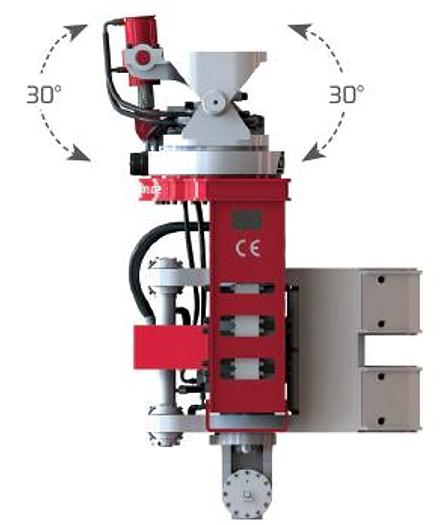

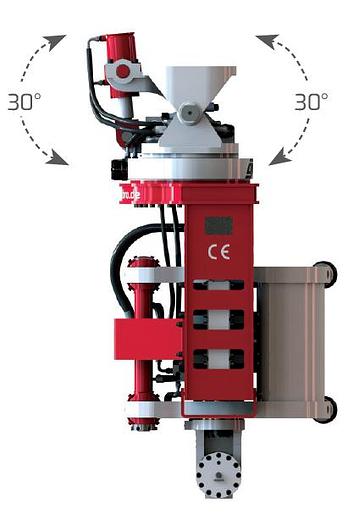

360° Rotating and +/- 30° Tilting Mechanism

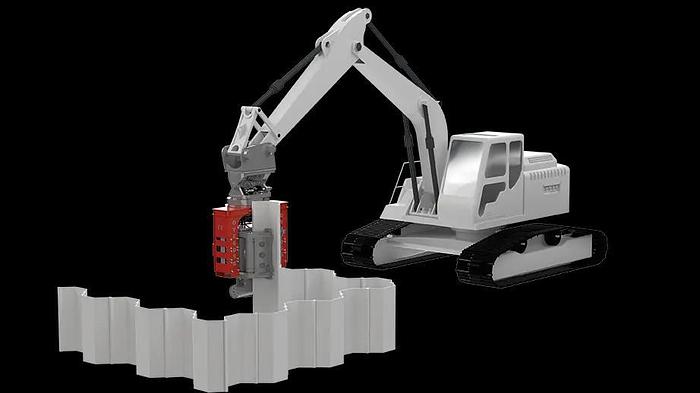

Side Grip Vibro Hammers can handle, pitch and drive the sheet and tube piles. It is capable to accomplish the whole pile driving process without need of manual handling of the piles or assisting machinery.

4 MAIN ADVANTAGES OF SIDE GRIP VIBRO HAMMER

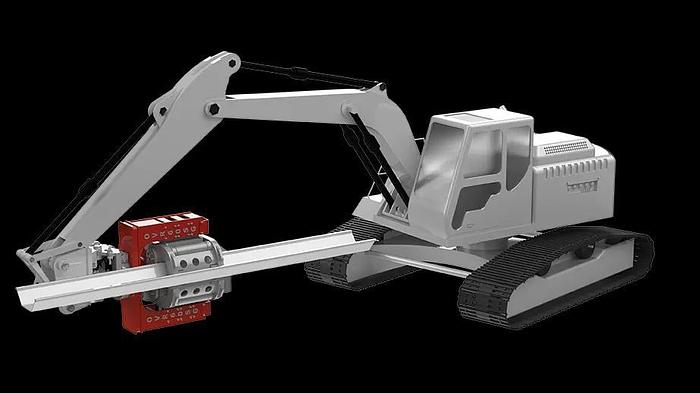

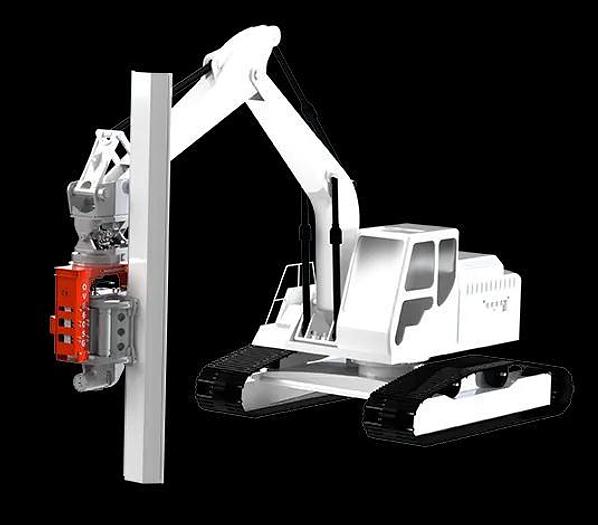

1. Excavator Mounted

• Suitable for all crawler types and wheeled excavators,
• Controlled by a special electronic control system,
• Easy to operate,
• Works with excavator’s standard hydraulic system.

2. Advanced Mobility

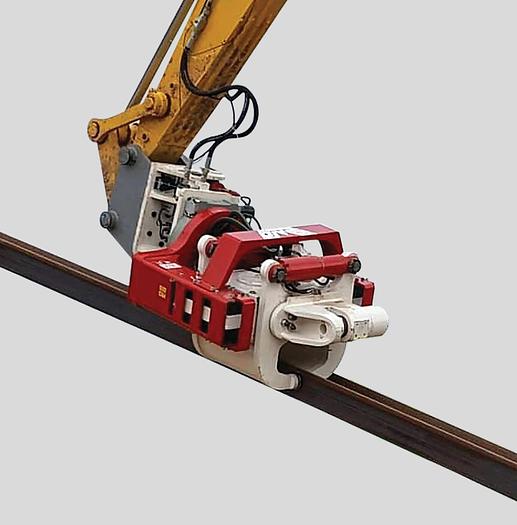

• With 360° rotating system and 30° tilt mechanism, OMS vibro hammer can be worked in small areas. Side grip sheet pile drivers are capable of handling, pitching, and driving/extracting.

3. Product Range

• Depending on your excavator power or project requirements, OMS has different sizes and capacity OVR-SG machines. These machines have various types of arms for sheet piling, pipe piling and timber piling.

4. Quick Setup Time

• OMS Side Grip Vibro Hammer can be fitted easily and quickly without any modifications required to the excavator and is controlled directly by the excavator operator.

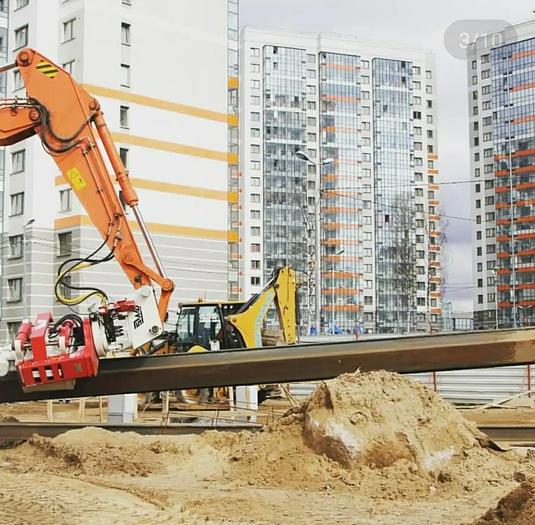

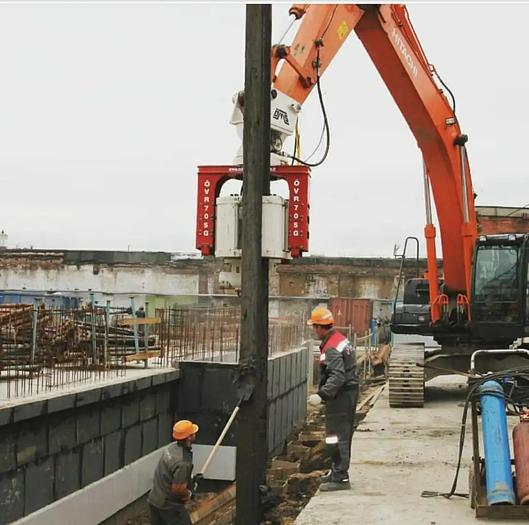

The high frequency side grip pile driver vibro is fast, accurate, safe and suitable for driving sheet piles and cassion (pipe) into variety of soils.

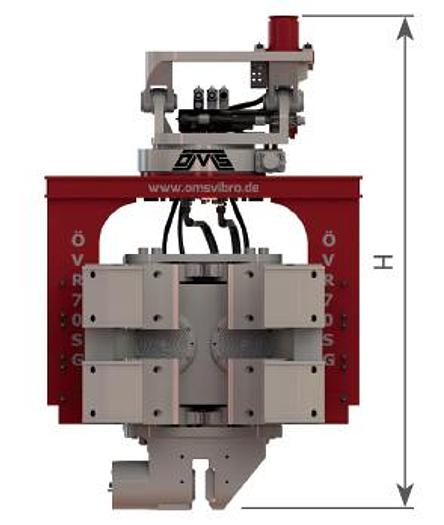

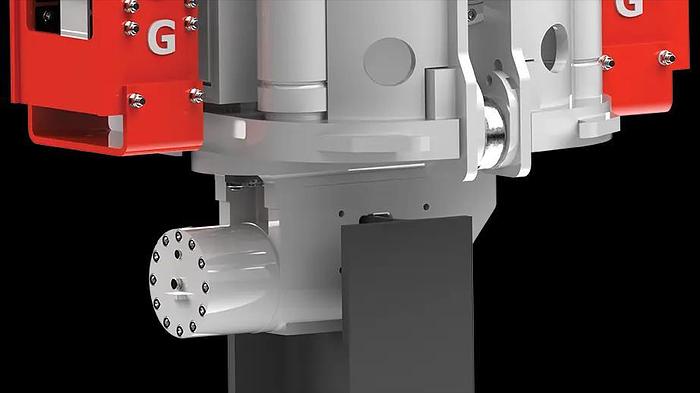

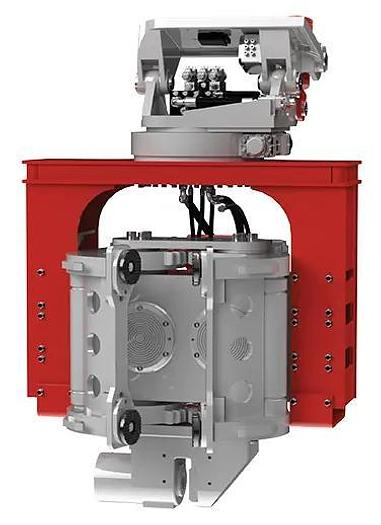

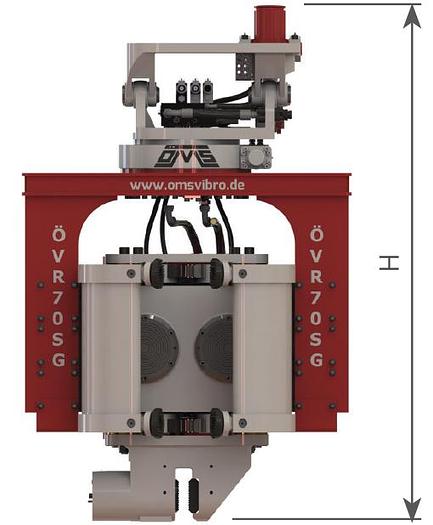

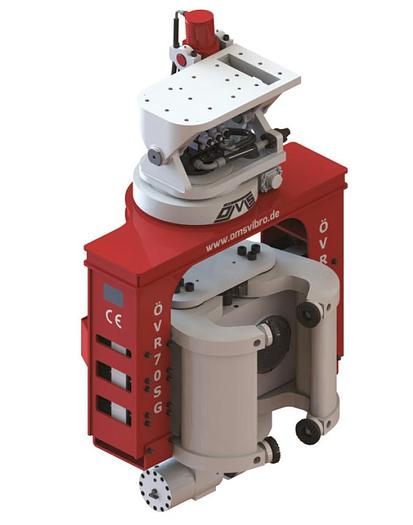

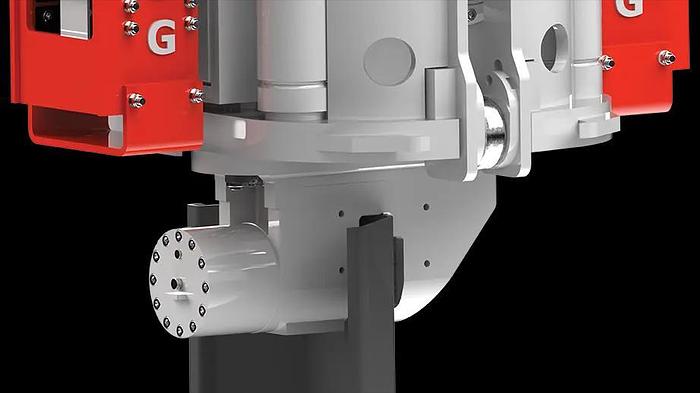

OMS Side Grip is a kind of Vibratory Pile Driver for excavator. It is equipped with both gripping arms/clamp and the bottom clamp. One of the clamps is located in front of vibration case, while the other one is below the vibration case. Hydraulic clamps have gripping jaws. The hydraulic cylinder operates the gripping arms with force up to 500 kN. Bottom clamp is operated with up to 440 kN, depending on clamp relief pressure. The clamps can be opened and closed directly from excavator “Joy Stick” or from the electrical remote control monitor. Clamping and un-clamping occurs in a few seconds.

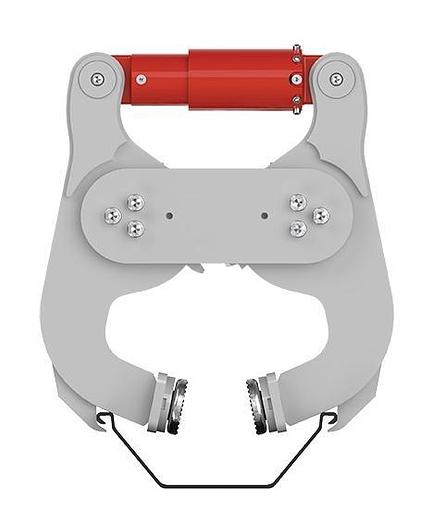

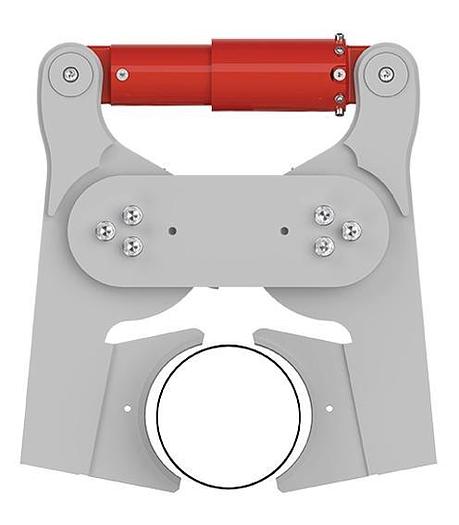

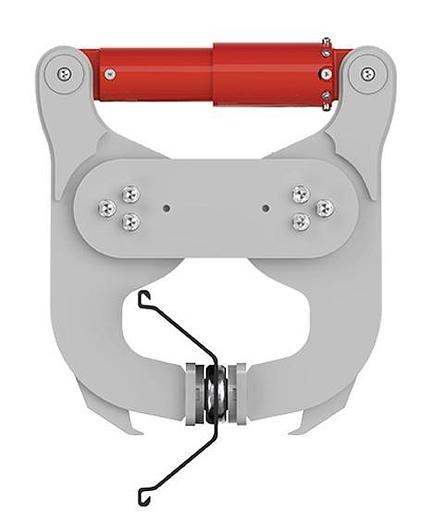

SIDE GRIP VIBRO HAMMER PILE ARMS

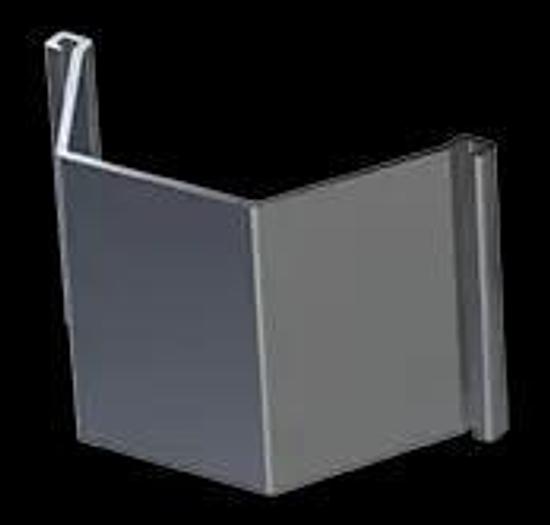

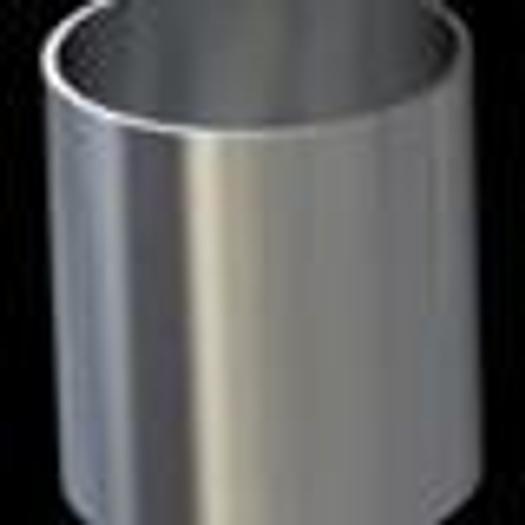

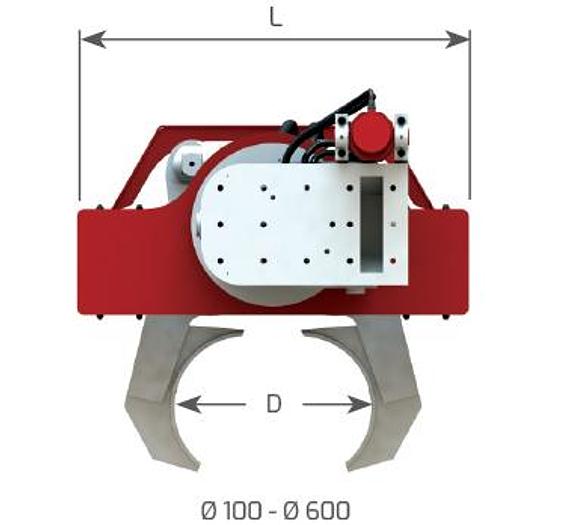

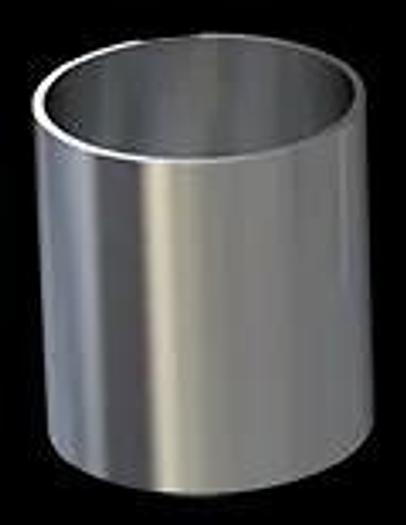

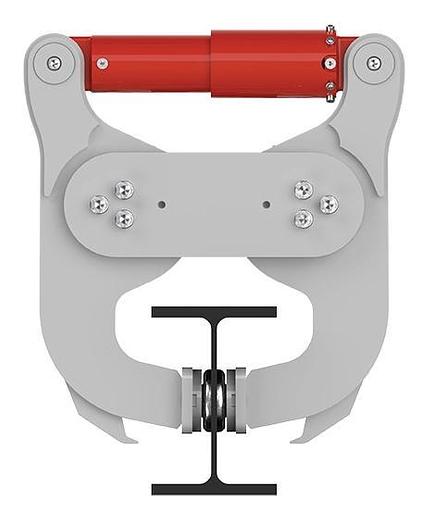

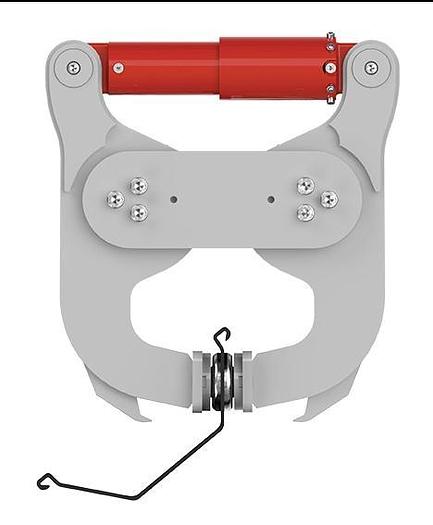

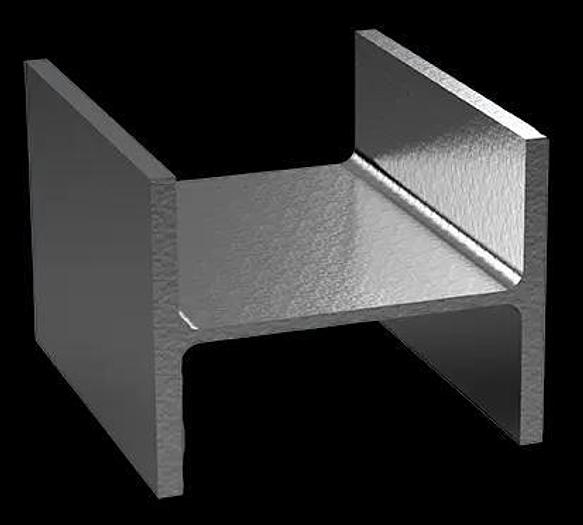

Main feature of side grip vibro hammer is “side grip pile arms”. Side Grip arms are designed for handling, pitching, driving and extracting of various types of piles. Depending on your needs, arms can be changed. With the help of these arms many types of sheet piles, H beams, I beams and tubular piles can be used.
